Winson WCM3720A

The Winson WCM3720A current Sensor Module provides economical and precise solution for AC current sensing in industrial, commercial and communications systems. The unique package allows for easy implementation without breaking original system and make current sensing possible. Typical applications include load detection and management, over-current fault detection and any intelligent power management system etc…

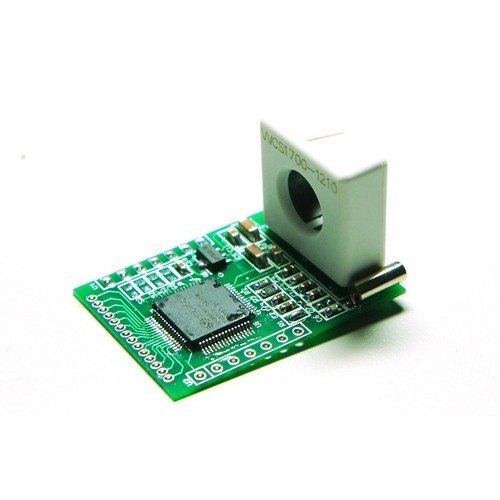

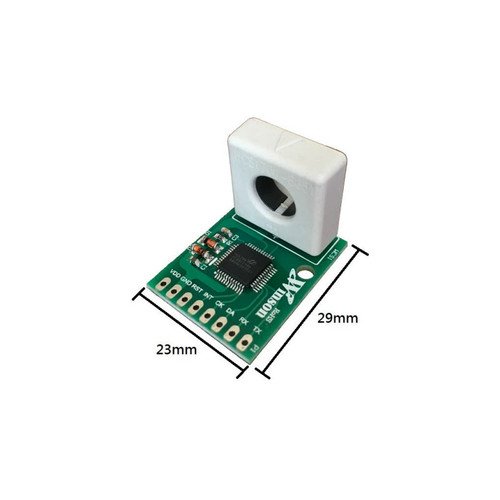

The WCM3720A module consists of a current sensor and a very high accuracy Analog to Digital converter, power on/off switch, digital signal of current and a setting current over control output and an internal regulator for sensor. The WCM3720A includes a current sensor with a diameter 9mm hole, users can just use system’s own electric wire by pass it through this hole to measure passing current without breaking original system, user’s MCU can get the real data from DATA pin.

Feature of WCM3720A

Operating Voltage: 4.0 V ~12.0 V for Vcc

Isolation Voltage 4KV

Digital current data output, easy interface with MCU (UART communication)

Baud Rate: 2.4K bps

Internal regulated voltage for sensor

Measurement range: 0A – 20A

Built-in LCD driver

Resolution: I < 10A: 1 mA I ≧ 10A: 10 mA

Accuracy (0A ～ 20A): 80mA ~ ± 5%

Can setting 1~15A over-current protection control

Calibrated by 5V, could customize different voltage calibration

Provide 3.3V operating module

Applications of WCM3720A

AC Current meter

Current Protector
