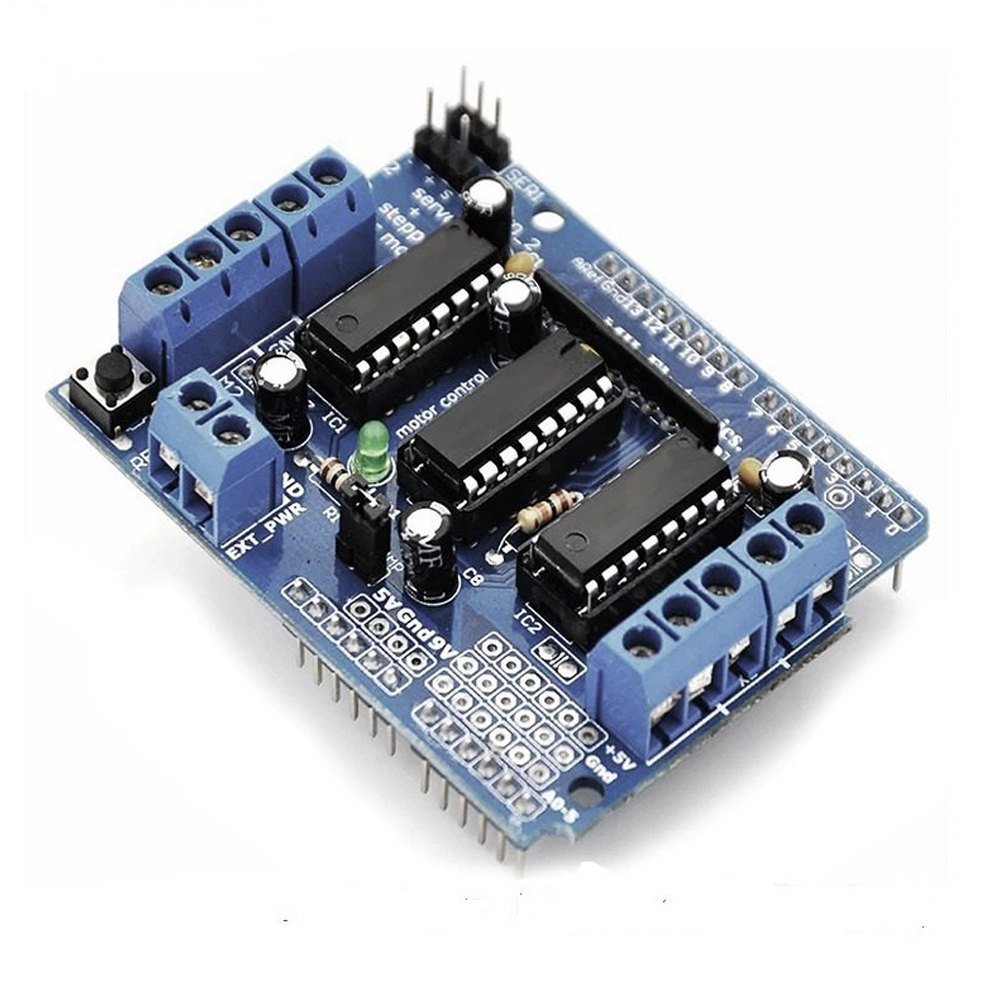

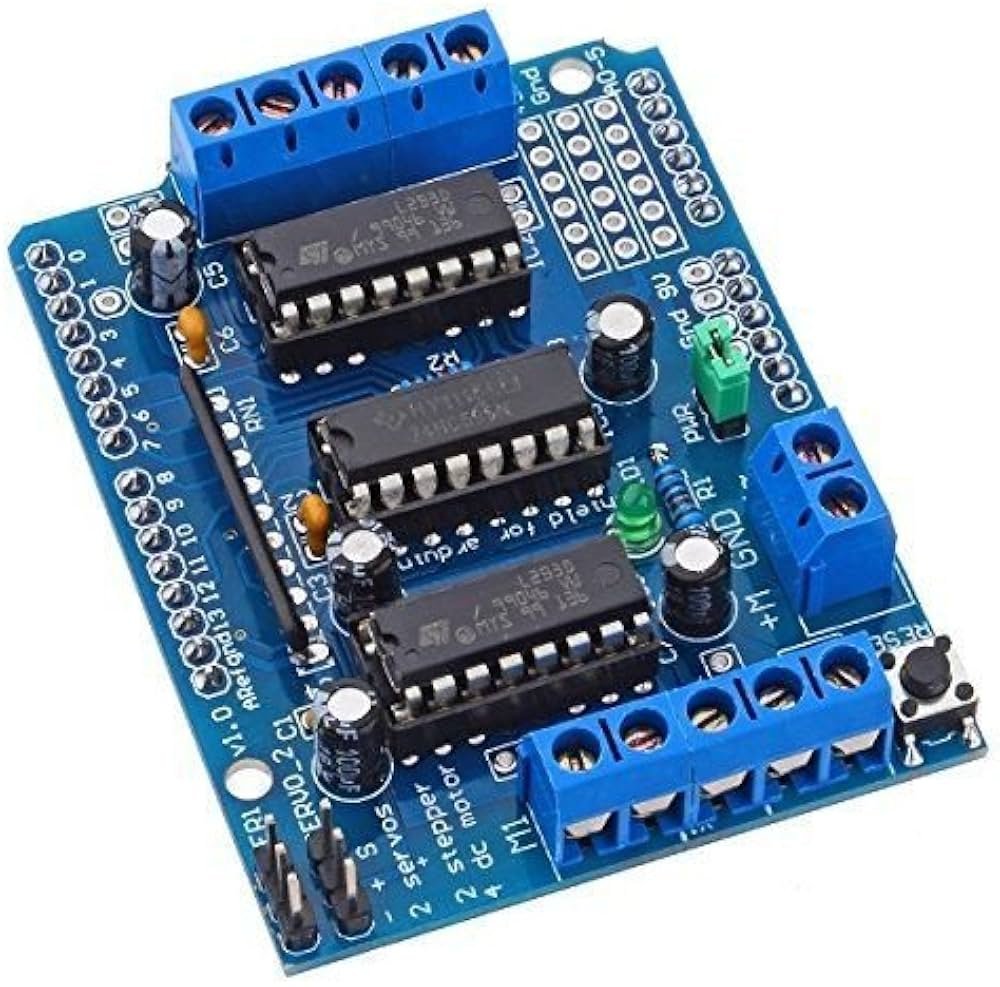

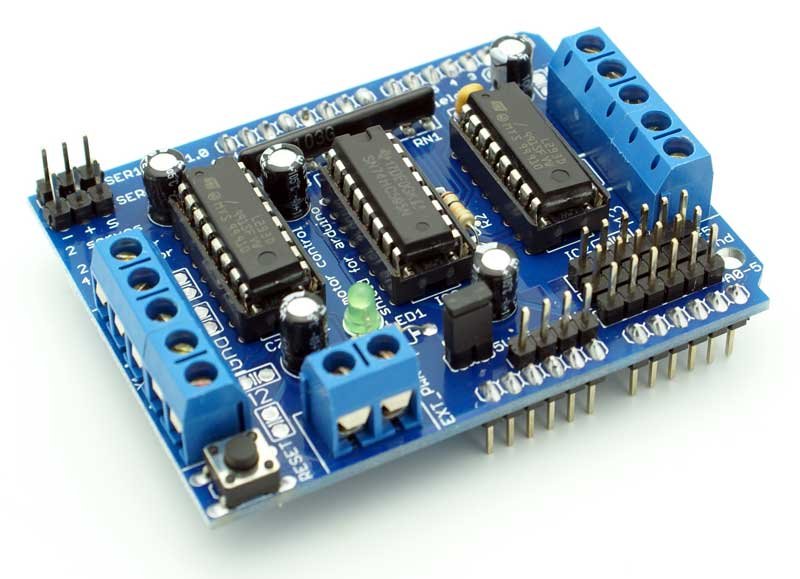

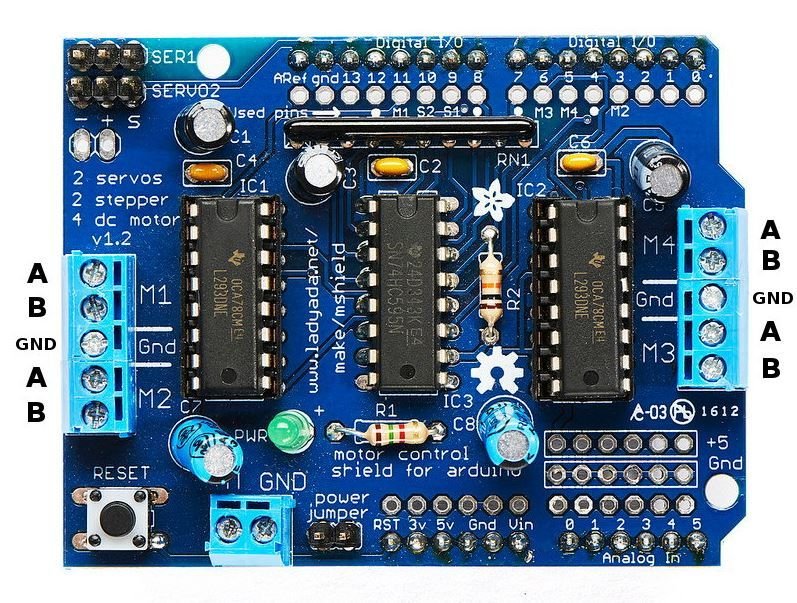

L293D MOTOR DRIVER SHIELD FOR ARDUINO
Original price was: ₹200.00.₹180.00Current price is: ₹180.00.
+ Free ShippingThis Arduino compatible motor Driver shield is a full-featured products that it can be used to drive 4 DC motors or two 4-wire stepper and two 5V ‘hobby’ servo. It drive the DC motor and stepper with the L293D, and it drive the servo with Arduino’s pin9 and pin10.
Availability: 50 in stock
Features:
2 x L293D Motor Control Chips
Total of 4 H-Bridges for controlling 4 DC motors or 2 Stepper motors
2 x Server ports for controlling RC Hobby Servos
The logic control voltage Vss: 4.5~5.5V
Motor Supply Voltage: 4.5 ~ 12V
Reduced control pins needed through 8-stage serial shift registers
Drive part of the operating current Io: 1.2A (0.6A per bridge)
External power connection via a screw-terminal block
Screw-Terminal blocks for connection to motors
